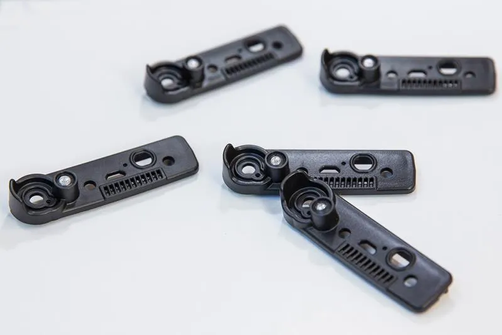

What is Injection Molding?

Injection molding is a manufacturing process that injects molten plastic into a mold, or tool, to produce complex shapes. The process can be performed with a range of plastic materials, including thermoplastics, thermosetting polymers, and elastomers. Injection molding is used to manufacture a wide variety of parts, from the smallest components to entire body panels of cars.


Material for the part is fed into a heated barrel, mixed using a helical screw, and injected into a mold cavity — where it cools and hardens to the configuration of the cavity. Molds are built by a toolmaker from metal, usually Steel or Aluminum, and precision-machined to form the features of the desired part. Simple injection molds can be created from 3D-printed photopolymers, which do not melt during low-temperature molding.


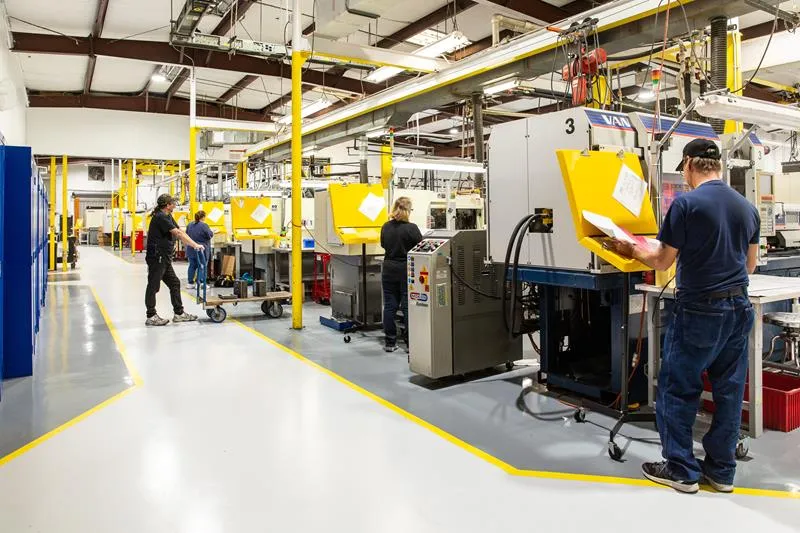

Injection molding uses a special-purpose machine, or press, that has three parts: the injection unit, the mold, and the clamp. Parts to be molded must be carefully designed to facilitate the injection process. The part's material and desired shape, the mold material, and the properties of the press must all be taken into account. The versatility of injection molding is facilitated by its breadth of design possibilities.

How Does Injection Molding Work?

Injection molding uses a ram or screw-type plunger to force molten plastic material into a mold cavity. This material solidifies into a shape that has conformed to the contour of the mold. Injection molding is most commonly used to process thermoplastic and thermosetting polymers. Thermoplastics are by far the most prevalent, due to characteristics that make them suitable for injection molding — such as recyclability, versatility for various applications,  and ability to soften and flow on heating.


How Injection Molds are Made

Molds can contain a single cavity or multiple cavities. In multi-cavity molds, each cavity can form identical parts or multiple unique geometries during a single cycle. Molds are generally made from Tool Steels, but Stainless Steels and Aluminum molds are suitable for certain applications. Aluminum molds are typically used for lower quantities and precision, due to certain mechanical properties that make Aluminum more prone to wear, damage, and deformation during injection and clamping. However, Aluminum molds are cost-effective in low-volume applications, as mold fabrication costs and time are considerably reduced. Many Steel molds are designed to process millions of parts during their lifetime and can cost hundreds of thousands of dollars to fabricate.


Insert Molding, Overmolding, and Two-Shot Molding

Pre-molded or machined components can be inserted into the cavity while the mold is open, allowing the material injected in the next cycle to form and solidify around them. This process is known as insert molding and allows single parts to contain multiple materials. Insert molding is often used to create plastic parts with protruding metal screws so they can be fastened and unfastened repeatedly.


Certain molds allow previously molded parts to be reinserted to allow a new plastic layer to form around the first part. This process is referred to as overmolding and allows, for example, production of one-piece tires and wheels.

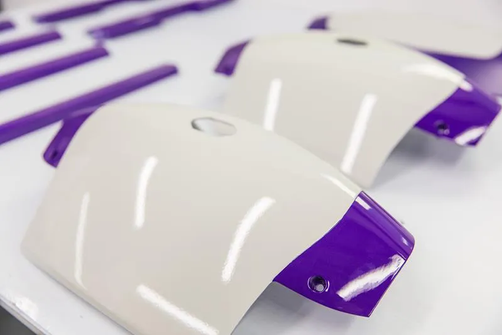

Two-shot or multi-shot molds are designed to "overmold" within a single injection cycle. Two-shot molding requires specialized injection molding machines with two or more injection units. This process is actually an injection moulding process performed twice and therefore has a much smaller margin of error. In the first step, the base color material is molded into a basic shape, which contains spaces for the second shot. Then the second material, a different color, is injection-molded into those spaces.


Scientific Injection Molding

In traditional molding, the entire injection process occurs at one constant pressure to fill and pack the cavity. For high-precision parts, this method can allow variation in dimensions between cycles. More recently a method called scientific injection molding has gained market adoption. In scientific molding, the injection of the plastic is "decoupled" into stages for better dimensional control and shot-to-shot repeatability.


First, the cavity is filled ~98% under tight velocity controls. Once the cavity is 98% full, the molding press switches from velocity control to pressure control — where the cavity is "packed out" at constant pressure and sufficient velocity.

Natural Cosmetics Oil

Advantages of Injection Molding

Injection molding offers many advantages, some of which include:


  • High-output production

  • Precision and repeatability

  • Low part cost once the mold is built

  • Ability to produce complex part geometries

  • Process efficiency

  • Concurrent use of multiple plastic materials

  • Diverse finishing options

  • Color options and control

  • Low labor costs

Injection Molding Materials

Most polymer resins are injection molded, including all thermoplastics, some thermosets, and some elastomers. In 1995, the number of available materials for injection molding totaled ~18,000. Since then, that number has increased at a rate of ~750 per year.


Available materials include blends of previously developed plastics, so product designers can choose the material with the best set of properties from a vast selection. Common criteria for material selection include the strength and function required for the final part, resin and processing cost, and molding compatibility and parameters.


Please reference our Materials page for more information on plastic options for injection molding.

Injection Molding Applications

Injection molding is used in a wide range of industries and products. Some examples include:


  • Aerospace: Airframe and aircraft interiors, satellite components, turbine housings, turbine blades, radomes, battery housings, circuit boxes, flame resistant housings, pilot and navigation controls, missile precision optical components

  • Construction: Fasteners, hand tools, accessories, window and door hardware, pipe and electrical fittings

  • Consumer: Containers, packaging, dog toys, electronic devices, household items, electronic device cases, appliances, furniture, toothbrushes, toys, sporting goods

  • Defense: Sight scope, EMI/RFI shielded devices, security equipment, firearms components, optical components for weaponry, combat gear and devices

  • Energy: Chemical sensor device, metering equipment, smart grid components, fluid handling equipment

  • Industrial: Food processing equipment components, beverage filter components, food storage, containers, irrigation systems, agricultural equipment, gears, mechanical parts, lawn care, fluid handling systems, urban/organic farming

  • Medical: Drug delivery devices, respiratory equipment and disposables, diagnostic test kits, device packaging, prosthetics, implants, diagnostic laboratory equipment enclosures, surgical arms and robotics, surgical prep products, imaging components, dental equipment, biotech devices, medical furniture and beds

  • Technology: Telecom adapters, router housings, cable connectors, electronic device housings, computer components

  • Transportation: Automotive parts, RV components and accessories, ATV controls and parts, train seats, baggage containers, watercraft parts, snowmobile controls and accessories, fluid handling systems
